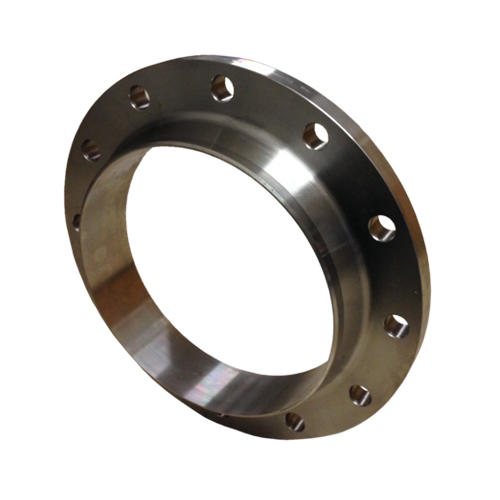

Collar Flange 12
- Availability: In Stock
|
DN mm |

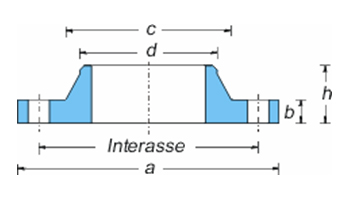

ø Est. tubo mm | a mm | b mm | c mm | d mm |
h mm |
Fori |
Peso kg | ||
| Interasse mm | ø mm |
Numero |
||||||||
|
300 |
323,9 | 460 | 28 | 344 | 326,0 | 78 | 410 | 25 | 12 |
21,80 |
| Scheda tecnica | |
| Scheda tecnica | Collar flanges are able to withstand great stresses. They are suitable for use in all demanding fields, with more dangerous fluids. Collar flanges are used in the butt joint of piping elements, when the possibility of bending stresses on the coupling is foreseen, due to expansions of the line or other variable forces.
|
